BIASCUT FABRIC FOR SILICONE HOSE REINFORCEMENT:
|
|

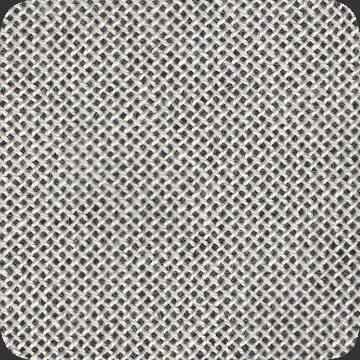

Aramid Biascut NT1224 |

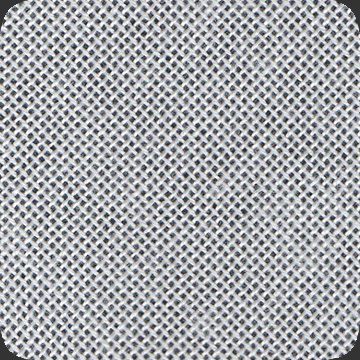

Aramid Biascut NT1332 |
|
|

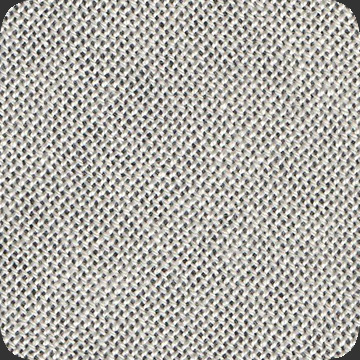

Polyester Biascut PT1332 |

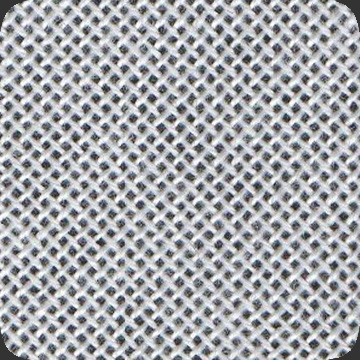

Polyester Biascut PW0320 |
FABRIC PROPERTIES:
▲ High temperature resistant
Meta Aramid fabric is able to perform well for a long period of time under 260℃ And short period under 300℃
▲High Adhesion performance
We can do special Priming to improve the adhesion of fabric with Silicone rubber or Fluorosilicone rubber.
▲Low expansion diameter rate
With correct designed the fabric, our fabric for silicone hose has low expansion diameter rate during using in Turbocharger Engineer.
▲Resistant to chemicals
Has a high resistance toward to gasoline, diesel oil, weak acid, weak base and the majority of organic solvents;
▲outstanding EDGE IN TUBULAR FABRIC
There will always be a thick edge with high density exist in the tubular woven fabric. This will cause poor tear tenacity during the thick edge place in rubber products. We use the advanced technology to weave the tubular fabric with the edge same as inside. Now you can have the real 45° Bias Cut seamless fabric in the same density without thickness line.
|
|
Normal Edge |
improved Edge |
▲Strength in Warp & Weft
Bias cut fabric give an outstanding strength in warp and weft which make the rubber products more flexible.
▲ Bias Cut at 45°or 120°
We can do bias cut for our customers and cut into the length needed. Like 50cm, 60cm, 80cm, 100cm, 126cm,166cm.
|
|
Normal Woven Fabric |
Tubular Bias Cut Fabric |
▲Textile flexiable properties
High resistance to breakage and its high break elongation ratio guaranteed the end product with high intensity, good product longevity, and better tolerance to injection
▲Quality Stability & Reliable
With 10 years experience in service automobile industry producing fabric for silicone hose, SEGURMAX understand the strict requirement in Quality Control & Stability Supply in delivery.
▲Stock Base & Fast Delivery
Most of our fabric is stock base, you can get the fabric in very short time. Even the special requirement in weight or width, we can produce in a very short time.
▲Outstanding value
Seugrmax choice chinese meta aramid fiber & polyester fiber to supply customers same as europe quality fabric at competitive price.
